Specs
Axles, w/ Electric Brakes:
 (2) 10,000 lb rated
Main Frame: 12" / 14#, I Beam
Drop-Leg Jack: (2)
Tongue: 8' Long / 12" I Beam
Tires: (8) 750/16
Floor: 2" Douglas Fir
Cross Members: 3" Channel
Breakaway: Box & Switch

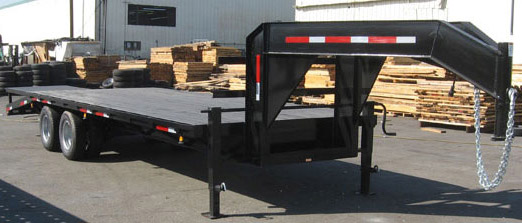

Hitch: (3) 2 5/16" Gooseneck Or 5th wheel pin, Or Pintle

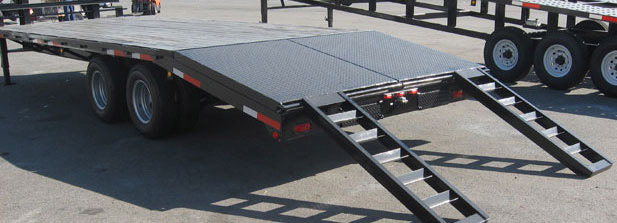

Dovetail: Option 1: 5' Pop-Up Dovetail w/ Slide-In Ramps and Storage
Option 2: 5' Fixed Dovetail w/ 3 Fold-Over Ramps
Dimensions: Gooseneck Length: 8'6"
Overall Width: 102"
Deck Height: 37"
Deck Configurations: GN252 (20 + 5)
GN272 (22 + 5)
GN292 (24 + 5)
GN312 (26 + 5)
GN332 (28 + 5)
GN352 (30 + 5)
GN372 (32 + 5)
GN402 (35 + 5)
Colors
Polar White
Black
Victory Red
Dark Gray
Light Gray
Forest Green
Gardena Blue
Safety Orange
Safety Yellow
Features
  • Spare Tire & Mount
  • Stake Pockets with Rub Rail
  • 7-Wire Blade RV Connector with Breakaway System
