TRAILERS
Gallery
Specs - PDF
Available as: Fun Runner SB
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.
| Model: | 232 | 252 | 272 | 293 |
| Enclosure Length: | 23' | 25' | 27' | 29' |
| Tongue Length: | 4'6" | 4'6" | 4'6" | 4'6" |
| Overall Length: | 27'6" | 29'6" | 31'6" | 33'6" |
| Tongue Weight: (Dry)* |
740 lbs. | TBD | TBD | TBD |
| Trailer Weight: (Dry)* |
6,300 lbs. | TBD | TBD | TBD |
| Gross Weight: (Trailer + Load)* |
10,000 lbs. | 10,000 lbs. | 10,000 lbs. | 15,000 lbs. |
| Ramp Door Opening: | 94Wx78H | 94Wx78H | 94Wx78H | 94Wx78H |
| Cargo Area Width: (between dinettes) |
76.5" | 76.5" | 76.5" | 76.5" |
| Cargo Area Width: (between walls) |
96" | 96" | 96" | 96" |
| Cargo Area Length: (to 1st Cabinet) |
11'6" | 13'6" | 15'6" | 17'6" |
| Fresh Water Capacity: | 50 Gal. | 50 Gal. | 50 Gal. | 50 Gal. |
| Gray Water Capacity: | 40 Gal. | 40 Gal. | 40 Gal. | 40 Gal. |
| Black Water Capacity: | 40 Gal. | 40 Gal. | 40 Gal. | 40 Gal. |
| Propane Tank Size: | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. |
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.

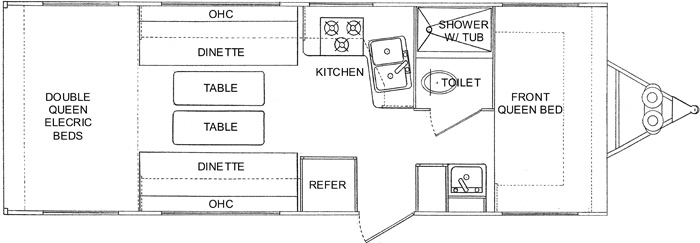

Floor Plans
Exterior Colors
Polar White
Black
Victory Red
Dove Gray
Forest Green
Indigo Blue
Champagne Beige
Interior Fabric Colors
Interior Cabinet Finishes
Standard Features
- 3 Burner Cooktop With Oven
- Two Convertible Dinettes / Beds
- Overhead Cabinets on Both Sides
- Full Bathroom w/ Shower & Tub
- 6.3 C.F. Refrigerator
- Double Electric Queen Size Beds
- Air Conditioner 13.5 KBTU
- Side Awning
- Exterior Shower
- 6 Gal. DSI Water Heater
- Two 5 Gal. Propane Tanks
- Chrome Wheels
- R-7 Insulated Walls & Ceiling
- Stereo System Pre-Wire
- Two 12V Flood Lights
- Generator Capability Built In
- 60 Amp Converter w/ 12V Battery Charger
- 4 Wheel Electric Brakes
Options
